| İsim: | Kürek Kurutucu | Anahtar kelime: | İçi Boş Kürek Kurutucu |
|---|---|---|---|
| önemli satış noktaları: | Enerji Tasarrufu | Özellik: | Düşük Enerji Yüksek Verimlilik |
| Vurgulamak: | Sludge Chemical Paddle Dryer,Industrial Processing Sludge Paddle Dryer,Compact Footprint Paddle Dryer |
||

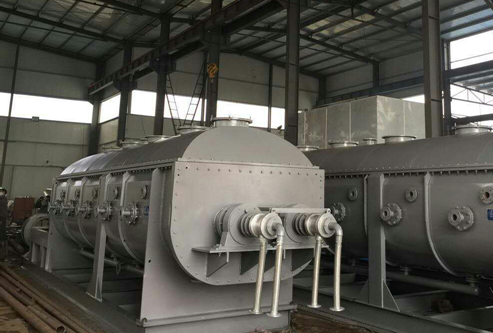

High Efficiency Paddle Dryer For Industrial Sludge Chemical Processing
Product Description:
Our Horizontal Hollow Blade Paddle Dryer is a low-speed, agitation-based drying solution designed for the most challenging materials. By utilizing indirect conduction heating, this equipment ensures that wet materials—from thin slurries to thick pastes—come into full contact with the heat transfer surfaces. Whether you are processing hazardous waste or high-purity chemicals, our paddle dryer offers a self-cleaning, energy-efficient mechanism that minimizes heat loss and maximizes output.
Product Key Features
Wedge-Shaped Self-Cleaning Blades: The unique wedge-shaped stirring blades provide high heat transfer efficiency and a self-cleaning function to prevent material buildup.
Indirect Conduction Heating: Eliminates the risk of heat loss through air, ensuring almost 100% of the thermal energy is used to heat your material.
Compact Footprint: Large heat transfer area per unit volume allows for shorter processing times and reduced building space requirements.
Versatile Thermal Media: Compatible with steam, thermal oil, hot water, or cooling brine, supporting temperatures from -40°C to 320°C.
Why Choose Our Paddle Dryer?
Energy Savings: For slurry materials, only 1.2 kg of steam is required to evaporate 1 kg of water.
Environmental Compliance: The system operates without large air volumes, minimizing dust entrainment and simplifying solvent recovery.
Process Stability: Materials move in a "piston flow" along the axis, ensuring uniform temperature and humidity throughout the batch.
Technical Specifications
| project | KJG3 |
| model | |
| heat transfer area(m2) | 3 |
| Effective volume(m3) | 0.06 |
| Speed range(rmp) | 15-30 |
| power(kw) | 2.2 |
| Container width A(mm) | 306 |
| Total width B(mm) | 736 |
| Container width C(mm) | 1956 |
| Total length D(mm) | 2972 |
| Inlet/outlet distance E(mm) | 1752 |
| Center High F(mm) | 380 |
| Total height H(mm) | 762 |
| Inlet N(inch) | 3/4 |
| Outlet O(inch) | 3/4 |
Installation structure diagram
Application Cases
| name | Jiangyin Farsun |
| Processing Equipment: | Paddle Dryer |
| Initial Moisture: | 70% |
| Final Moisture: | 25% |
| Processing Capacity: | 200 kg/h ~ 300 kg/h |
| Processing Equipment: | |
| Before processing | After processing |
|
|
Q: Can it handle heat-sensitive materials?
A: Yes. Because it operates at low speeds and allows for precise temperature control via indirect heating, it is ideal for heat-sensitive or easily oxidized products
